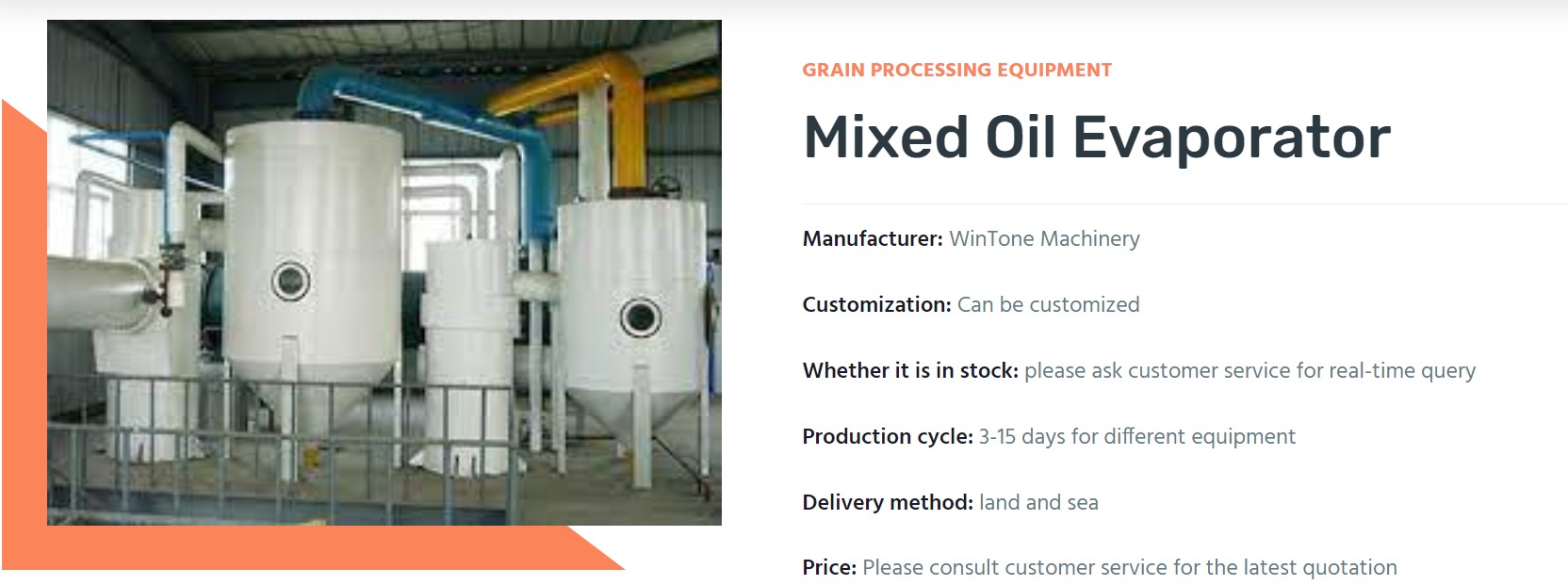

Mixed oil evaporator is mainly used for the oil and solvent separation and purification of mixed oil concentration in oil and chemical industry processing enterprises , so as to achieve the technological requirement.
Mixed oil evaporator characteristics: less steam consumption, simple operation, negative pressure evaporation, crude oil with good quality.| Model | Mark | Design pressure（MPa） | Working pressure（MPa） | Operating temperature（℃） | Design temperature（℃） | Heat exchange area（m2） | All capacity（m3） |
| ZFQ8.0 | Shell pass | 0.55 | 0.5 | 158 | 162 | 8 | |
| Tube pass | Ordinary pressure | Ordinary pressure | 120 | 150 | |||
| ZFQ15.0 | Shell pass | 0.55 | 0.5 | 158 | 162 | 15 | |
| Tube pass | Ordinary pressure | Ordinary pressure | 120 | 150 | |||
| ZFQ32.0 | Shell pass | 0.55 | 0.5 | 158 | 162 | 32 | |
| Tube pass | Ordinary pressure | Ordinary pressure | 120 | 150 | |||
| ZFQ40.0 | Shell pass | 0.55 | 0.5 | 158 | 162 | 40 | |
| Tube pass | Ordinary pressure | Ordinary pressure | 120 | 150 |
