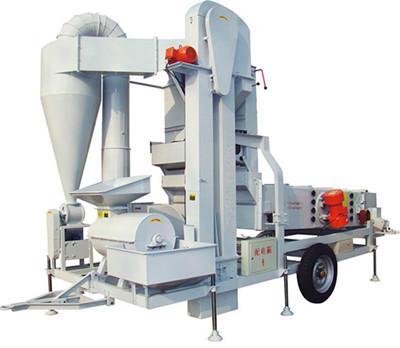

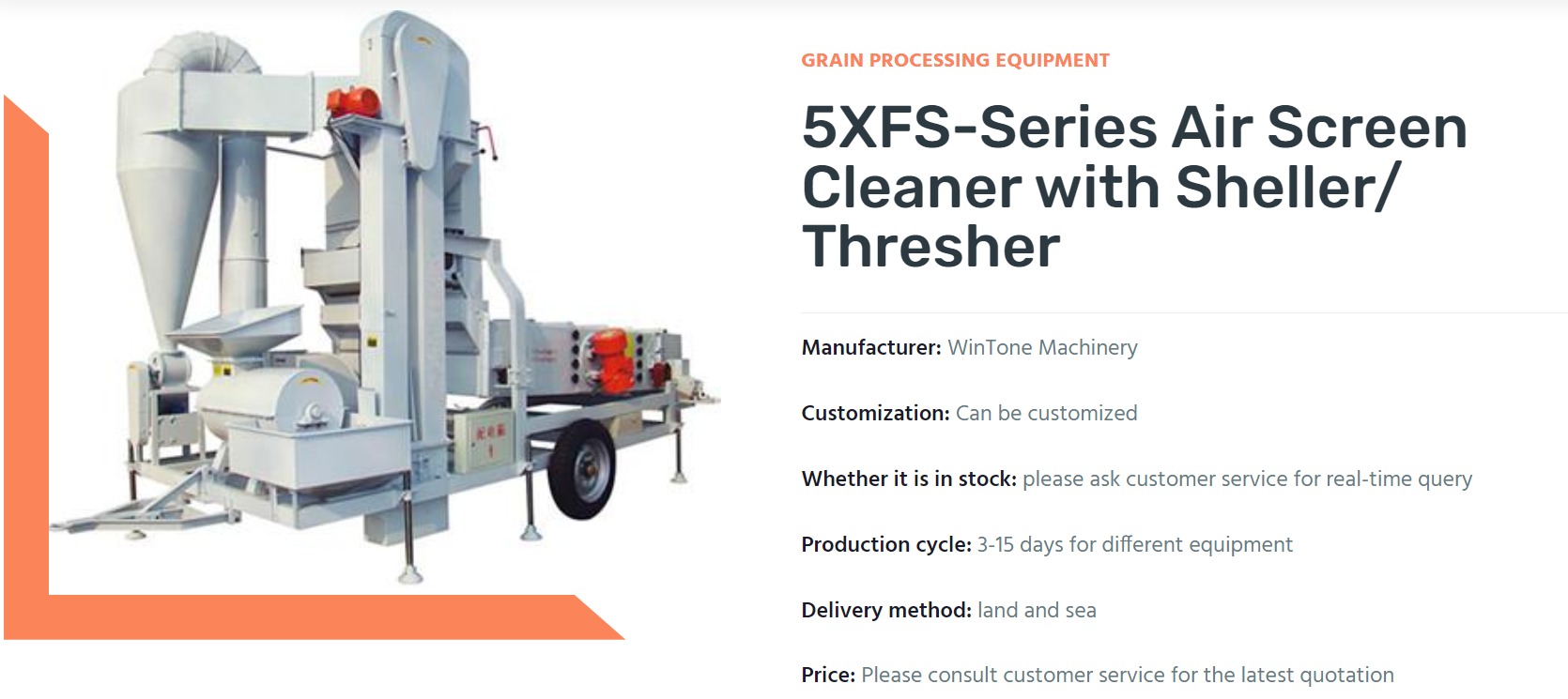

Shelling threshing SeriesIntroduction
5XFS-series Air-screen cleaner (with Sheller) can take off shell, straw, glume, thorns, wing, sharp, fur from full seed through soft grinding by Sheller.
Feature
1.It can remove light impurities through vertical screen, and the vibration screen can clean large and small impurities. And material can be divided to different sizes by different layers setting.
2.This machine is equipped with Sheller for Wheat, Barley, Paddy, and Sorghum.
Specification
| Model | Layer | Sieve Surface Area (mm) | Power | Capacity | Weight | Overall Size |
| kW | T/H | T | L×W×H mm | |||
| 5XFS-5BT | Three | 1000x2000 | 11.74 | 5 | 1.64 | 4500×1840×3380 |
| 5XFS-5CT | Four | 1000x2000 | 11.74 | 5 | 1.67 | 4500×1840×3380 |
| 5XFS-7.5BT | Three | 1250x2400 | 19.5 | 7.5 | 2.02 | 5100×2050×3430 |
| 5XFS-7.5CT | Four | 1250x2400 | 19.5 | 7.5 | 2.06 | 5100×2050×3430 |
| 5XFS-10BT | Three | 1500x2400 | 21.5 | 10 | 2.27 | 5100×2300×3600 |
Corn Thresher and Cleaner
Introduction
Threshers rotor adopts a new generation of flexible hammer-type hit design, which can thresh the corn completely with no broken corns and low damage rate.
Feature
1.It can also save labor with continuous operation.
2.This machine can remove dust, light, large and small impurities and then divide the corn into different sizes.
Specification
|
Model |
Layer |
Sieve Surface Area (mm) |
Power |
Capacity |
Weight |
Overall Size |
|
|
kW |
T/h |
T |
L×W×H |
||||
|
|
|
|
mm |
||||
|
5XFS-5BTL |
three |
1000×2000 |
11.79 |
5 |
1.93 |
4500×2200×3380 |
|
|
5XFS-5CTL |
four |
1000×2000 |
11.79 |
5 |
1.98 |
4500×2200×3380 |
